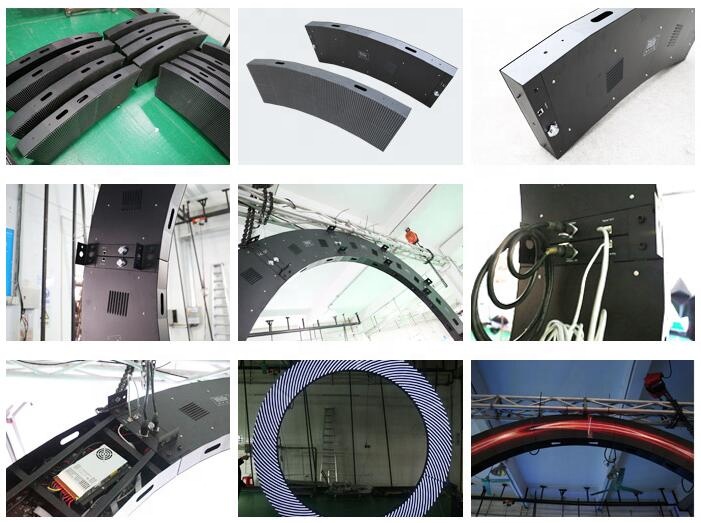

indoor p2.5 soft led module flexible led panel display screen
(1)Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
Technical Specifications
| Parameter |
Unit |
Value |
| Pixel Pitch |
mm |
2.5 |
| LED type |
|
SMD1515 |
| Brightness |
nits |
600~800 |
| Pixel density |
sqm |
160,000 |
| Viewing angle |
angle |
140°H and 140°V |
| Lifetime |
hour |
100,000 Hrs |
| Power consumption |
w/m2 |
Average 260w/m2, Max 700w/m2 |
| Operation power voltage |
HZ |
200-240 V / 50-60 Hz |
| Cabinet/size (W×H×D) |
mm |
720×720×80 |
| Cabinet/display surface in sqm |
m2 |
0.51 |
| Cabinet Materia |
|
Iron Cabinet |
| Cabinet weight: |
kg |
12.5kg |
| IP rating |
|
only indoor |
| Processing |
bit |
16bit |
| Refresh rate |
HZ |
2,000HZ |
| Operating temperature |
degree |
-10-30 degree |
| Storage temperature |
degree |
-30-50 degree |
| Operation humidity |
|
35-85% |
| Storage humidity |
|
10-90% |
Application
We guarantee all our displays, modules, parts for two full years. During this time, we will replace or amend all our goods for free if there is something wrong with them. We provide lifetime maintenance and charge only for the raw materials. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory. We also provide the operation manual, software, test report and so on. Any associated CAD drawing on how to fix up the display and some other expert suggestion will be provided.
Technology Training
1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
2. We will send our engineers to your country by negotiation.
Documents and Certification:
1. We provide the operation manual, software, test report and so on.
2. We can also provide all kinds of certification such as CE, UL and so on.
CAD Drawing and Fixing
1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
2. We will send our engineers to your place if we are expected after our negotiation.
Additional service:
We provide you the forwarding information, and some other information ,such as flight box, structure information for your reference for free.
